Round Vibrating Screen(YA)

【Introduction】:
A kind of advanced vibrating screen with circular motion
【 Capacity 】:
80~1700t/h
【Improvement】:
Ring groove rivets connection, plate type screen box, advanced structure, strong and durable Vibration exciter with eccentric shaft and eccentric block, high screening efficiency, large capacity

【Advantages】

Screen mesh is made of wear-resistant rubber with long service life;

Screen frame with high strength;

Large clearance bearings operating with low temperature lift;

Reasonable mechanical structure, low noise and high screening efficiency;

Ring groove rivets connection, advanced structure, strong and durable;

Large capacity, strong versatility of components and convenient repair.

【Product Structure】

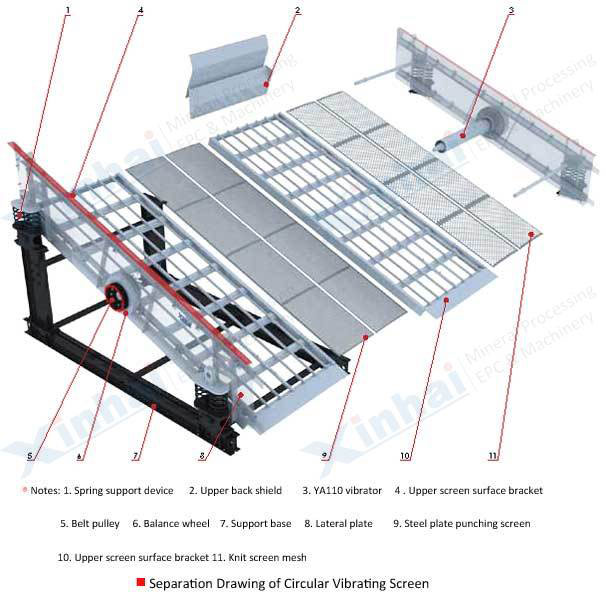

Round vibrating screen adopts eccentric shaft vibration exciter and eccentric block to adjust amplitude. The vibrator installed on the sideboard of screen box forces screen box to vibrate by the driving of motor. The sideboard of vibrating screen is made of high quality steel plate. Connect sideboards, beams, and the exciter base by high strength bolts or ring groove rivet. Vibrating screen adopts seat installation, and screen angle can be adjusted by changing the height of spring support. The motor of round vibrating screen are installed on the right side of screen box, and can also be installed on the left side of screen box. If no special requirements, the motor is installed on the right side.

【Technical Parameters】

ModelScreen SurfaceMax. Feed SizeCapacity (t/h)MotorWeight (kg)
Area (m2)Dip Angle (° )Mesh Size (mm)(mm)ModelPower (kW)
YA12364.3206~5020080~240Y160M-4114905
2YA123680~240Y160M-45311
YA15304.580~240Y160M-44675
YA15365.4100~350Y160M-45137
2YA1536400100~350Y160L-4155624
YAH153630~150160~650Y160M-4115621
2YAH153630~150;    6~50160~650Y160L-4156045
YA15426.56~50200110~385Y160M-4115515
2YA15426~50110~385Y160L-4156098
YA15487.26~50120~420Y160L-45918
2YA15486~50120~420Y160L-46321
YAH15487.230~150400200~780Y160L-46842
2YAH15487.230~150 ; 6~50200~780Y160L-47404
YA18366.530~150200140~220Y160M-4115205
2YA18366.530~150140~220Y160L-4155946
YAH18366.530~150400220~910Y160M-4115900
2YAH18366.530~150; 6~50220~910Y160L-4156353
YA18427.66~150200140~490Y160L-4155829
2YA18427.66 ~150140~490Y160L-4156437
YAH18427.630~150400450~800Y160L-4156352
2YAH18427.630~150 ; 6~50450~800Y160L-4157037
YA18488.6206~50200150~525Y160L-4156289
2YA18488.6200150~525Y160L-4156624
YAH18488.630~150400250~1000Y160L-4157122
2YAH18488.630~150 ; 6~50400250~1000Y160L-4157740
YA2148106~50200180~630Y180M-418.59033
2YA2148106~50200180~630Y180L-42210532
YAH21481013~200400270~1200Y180M-418.510430
2YAH21481030~150 ; 6~50400270~1200Y180L-42211190
YA216012.66~80200230~800Y180M-418.59926
2YA216012.66~50200230~800Y200L-42211249
YAH216012.630~150400350~1500Y200L-43012490
2YAH216012.630~150 ; 6~50400350~1500Y200L-43013858
YA244811.56~50200200~700Y180    M -418.59834
YAH244811.56~50400310~1300Y200L-43011830
2YAH244811.530~150; 6~50400310~1300Y200L-43013012
YA246014.46~50200260~780Y200L-43012240
2YA246014.46~50200260~780Y200L-43013583
YAH246014.430~150400400~1700Y200L-43013096
2YAH246014.430~150 ; 6~50400400~1700Y200L-43014455

【Successful case】

Round Vibrating Screen-case

Mongolia is built early, the mineral composition is simple. After improved the crushing equipment, it required to improve screening and feeding efficiency. Under the condition of cost control, the client chose Xinhai round vibrating screen. It adopted plate type screen box, which make higher structure strength and higher intensity to stand ore, finally meeting production requirements reasonably.
