【Introduction】:
A vibrating screen that screen box takes reciprocating movement along the directional linear, is used for fine screening
【 Capacity 】:
20~300t/h
【Improvement】:
Screen angle is adjustable Vibrating motor as vibration exciter, low energy consumption.

【Advantages】

Small motor power, only 1/4-1/5 of other screen;

High screen efficiency;

Adjustable screen angle Transferring the small load to base do not need special treatment;

Screen mesh is made of wear-resistant rubber with long service life

【Product Structure】

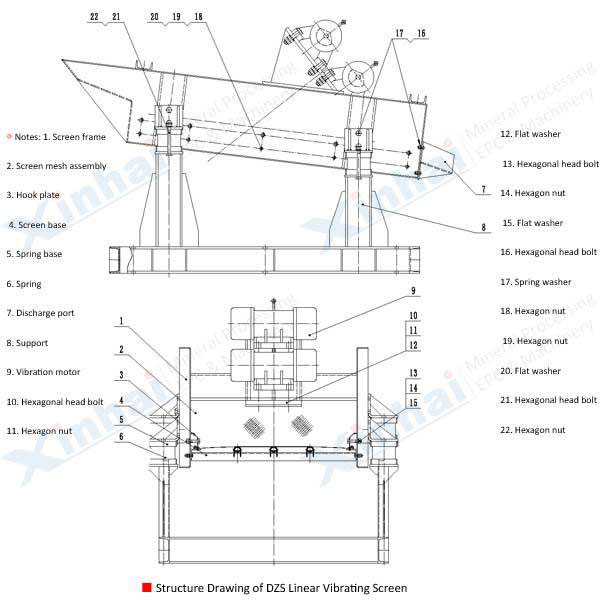

DZS linear vibrating screen is driven by double vibration motors. While two vibration motors doing synchronous rotation or counter¬rotation, the exciting force generated by eccentric block is cancelled out with transverse exciting force, and the longitudinal exciting resultant force is passed on the whole screen surface, in this way, the motion track of screening machine is a straight line. There is an inclination between the exciting force direction and screen surface, under the action of resultant force of exciting force and material gravity, the materials on screen surface are thrown up and jumped forward in a straight line. In this way, the materials screening and classifying are achieved.

【Technical Parameters】

Model Screening Area (m2) Amplitude (mm) Motor Model Motor Power (kW) Rotating Speed (r/min)
DZS0412 0.4X1.2 2~4 YZS-3-6 0.25 970
DZS0415 0.4X1.5
DZS0612 0.6X1.2
DZS0718 0.7X1.8 YZO-10-6 0.75 960
DZS0816 0.8X1.6
DZS0912 0.9X1.2
DZS0918 0.9 X 1.8 YZU-10-6 0.75
DZS1018 1.0X1.8 4~6 YZU-16-6 1.1 950
DZS1020 1.0X2.0 3~5 YZO-20-6 2
DZS1225 1.25X2.5 YZU-16-6 1.1
DZS1530 1.5X3.0 YZU-20-6B 1.5 960
2DZS1530 1.5X3.0 YZO-20-6 2 950
DZS1536 1.5X3.6 YZU-20-6B 1.5 960
2DZS0918 0.9 X 1.8 4~6 YZU-25-6B 1.5 960
2DZS1018 1.0 X 1.8 2~4 YZU-20-6B 1.5 960

【Successful case】

Linear Vibrating Screen-case

A domestic iron ore dressing plant adopted three stages one closed circuit in crushing and screening process. After a period of time, the owner found that electrical machine load far exceeds the original load, and the power consumption is heavier. Finally, they selected Xinhai linear vibrating screen with a small motor power of and a high screening efficiency, which can make better to meet the crushing and screening requirements, at the same time, the load passed from linear vibrating screen to basis is low, so it don’t need any special treatment, which saves the cost and maximizes the production, solving the loss problem.
