jaw crusher

Jaw Crusher

【Introduction】:
Xinhai jaw types of crusher with high production capacity, large reduction ratio and high crushing efficiency
【 Capacity 】:
0.5~700t/h
【Improvement】:
Xinhai improves the traditional specification of crushing chamber by adopting high speed swing jaw and cambered jaw plate.

【Advantages】

Advanced swing jaw assembly, more durable;

Suitable jaw crusher price ;

Large reduction ratio, optimum design of chamber and high crushing efficiency;

New cambered jaw increases the effective length of the jaw plate and brings lager capacity;

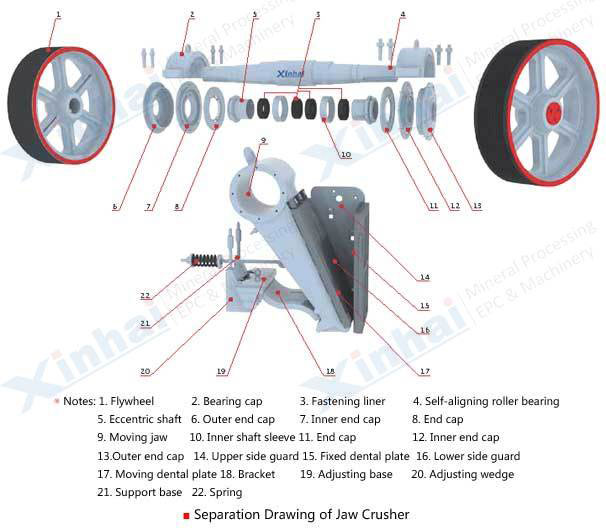

【Product Structure】

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and the stuff will be crushed in multiple ways. The angle of Jaw crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher.

【Technical Parameters】

Type Model Inlet Dimension (mm) Outlet
Dimension
(mm)
Max. Feed Size (mm) Capacity
(t/h)
Rotating Speed of Eccentric Wheel (r/min) Motor
Power
(kW)
Overall Dimension (mm) Weight
(kg)
Ordinary
Crushing
PE100X150 100X150 5~20 80 0.5 ~2 300 2.2 525X535X605 230
PE150X250 150X250 10 ~40 125 2~6 300 5.5 875X745X935 1100
PE200X350 200X350 10 ~50 160 6~10 300 7.5 1080X1060X1088 1600
PE250X400 250X400 20 ~60 210 8~26 300 15 1108X1090X1392 2396
ZGPE250X400 8~16 1430X1316X1296 2800
PE250X500 250X500 20 ~80 210 13 ~45 300 18.5 1360X1450X1440 3100
ZGPE250X500 13 ~21 1425X1420X1417 3300
PE400X600 400 X600 40~100 350 25 ~64 275 30 1650X1748X1520 5800
ZGPE400X600 14 ~36 1716X1736X1653 6500
PE500X750 500X750 50120 400 30 ~80 275 45 1900X1876X1821 9000
ZGPE500X750 250 1980X2024X1920 12000
PE600X900 600 X900 75 ~200 480 56~192 250 75 2280X2245X2320 16700
ZGPE600X900 2280X2245X2320 14500
ZGPE750X1060 750X1060 80~235 630 108~256 250 90 2450X2472X2795 28000
ZGPE900X1200 900X1200 95~265 750 186~398 200 110 3335X3182X3025 50000
ZGPE1100X1400 1100X1400 150~300 950 250~600 193 132 3900X3040X3875 70000
ZGPE1200X1500 1200X1500 160~320 1000 280~700 190 160 3800X3040X4150 82000
Fine
Crushing
PEX150X750 150X750 18 ~48 120 8~25 320 15 1210X1572X1045 2800
ZGPEX150X750 10 ~40 1240X1586X1025 3500
PEX200X1000 200 X1000 20~55 160 12 ~50 330 22 1860X1385X1200 5200
ZGPEX250X750 250X750 20 ~60 210 10 ~45 320 30 1751X1400X1515 4900
PEX250X1000 250X1000 20 ~50 210 15 ~50 330 30 1550X1990X1370 6500
ZGPEX250X1000 1650X1958X1460 6800
ZGPEX250X1200 250X1200 20 ~60 210 20 ~60 320 45 1650X2170X1465 9000
ZGPEX300X1300 300X1300 25 ~65 250 20 ~80 330 55 1980X2456X1740 11500

【Successful case】

jaw crusher-case

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and the stuff will be crushed in multiple ways. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher.
