Submerged Slurry Pump
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Break through the head limit (60 meters) of rubber pump, up to 70 meters
Impellers and casings lined with Xinhai No. 35 high wear-resisting rubber, the life is 2-4 times longer than the life of metal pump.
The rubber slurry pump with resistance to wear and corrosion and high head
Packing sealing, simple and reliable, no leakage
It is easy to replace wet parts

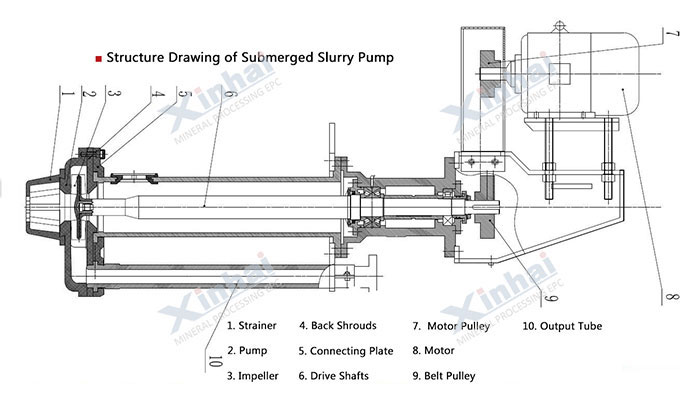

【Product Structure】
The main components of submerged slurry pump includes impeller, shaft, protective board, pump shell, packing box etc..
【Technical Parameters】
| Specification | Flow(m3/h) | Head(m) | Rotation Speed(r/min) | Motor Maximum Power(Kw) | Maximum Efficiency(%) | Impeller Diameter(mm) | Outlet Diameter(mm) |
| 40PV-SPR/XH | 17.239-39.6 | 4-26.0 | 1000-2200 | 15 | 40 | 188 | 40 |
| 60QV-SPR/XH | 25.5-105 | 5.5-30.5 | 700-1500 | 30 | 51 | 280 | 65 |
| 100RV-SPR/XH | 64.8-285 | 7.5-36 | 600-1200 | 75 | 62 | 370 | 100 |
【Successful case】
In a mineral processing plant in African Mali, the submerged slurry sump selected often waste because of the humid climate corrosion. In the process of reconstruction , Xinhai technical personnel added lining wear-resisting rubber for submerged slurry pump, its fill sealing solve the problem of the liquid omissions effectively, the abrasion resistance increased by 17%, the service life is more than one year, which is favored by customers.
