Metal Detector
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Digital phase shifter and detection technology;
Stable performance;
High detection sensitivity;
Strong anti- interference ability;
Lower price;
Convenient operation and maintenance;
Long service life;

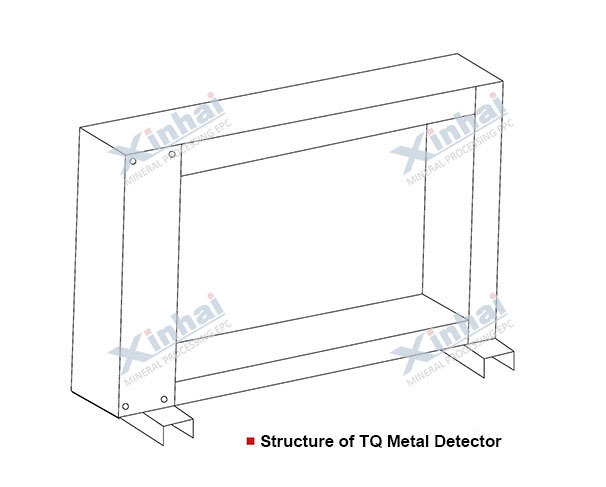

【Product Structure】
It uses the changing signal that produced when the metal enter into the sensor electromagnetic field, and through electronic technology to process and drive an actuator (electromagnet, motor switch) in order to remove harmful metals.
【Technical Parameters】
| Model | JTQ-500 | JTQ -650 | JTQ -800 | JTQ -1000 | JTQ -1200 | JTQ -1400 |
| Suitable for Belt Width (mm) | 500 | 650 | 800 | 1000 | 1200 | 1400 |
| Long Shaft with Inner Bore (mm) | 700 | 850 | 950 | 1150 | 1370 | 1590 |
| Short Shaft with Inner Bore (mm) | 330 | 330 | 370 | 410 | 510 | 610 |
| Max. Sensitivity for Normal Ore (mm) | 20 ~25 | 25 ~30 | 25 ~30 | 35 ~40 | 45 ~50 | 55 ~60 |
| Max. Sensitivity for Magnetic Ore (mm) | 30 | 35 | 40 | 50 | 60 | 70 |
【Successful case】
A gold processing plant in Hebei produced a large number of ore from the mines, after crushing, the customer chose Xinhai metal detectors for testing, effectively detecting the iron from the crushing ore. The detector performance is stable, and has strong anti-interference ability, it was not affected by the mineral magnetism in the whole detection process. The detected ore is extracted high grade gold concentrate after mineral processing, the impurity content is low, verifying the equipment performance. At the same time, the equipment structure is simple, the cost is low, saving the cost for the customer.
