Concentrating Table (Shaking Table)
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
The large range of transverse slope adjustment (0～10°)，adjustable stroke;
Keep the stably operation when change the transverse slope and stroke;
Spring is arranged in the case with compact structure;
Without reagents consumption, little electricity consumption

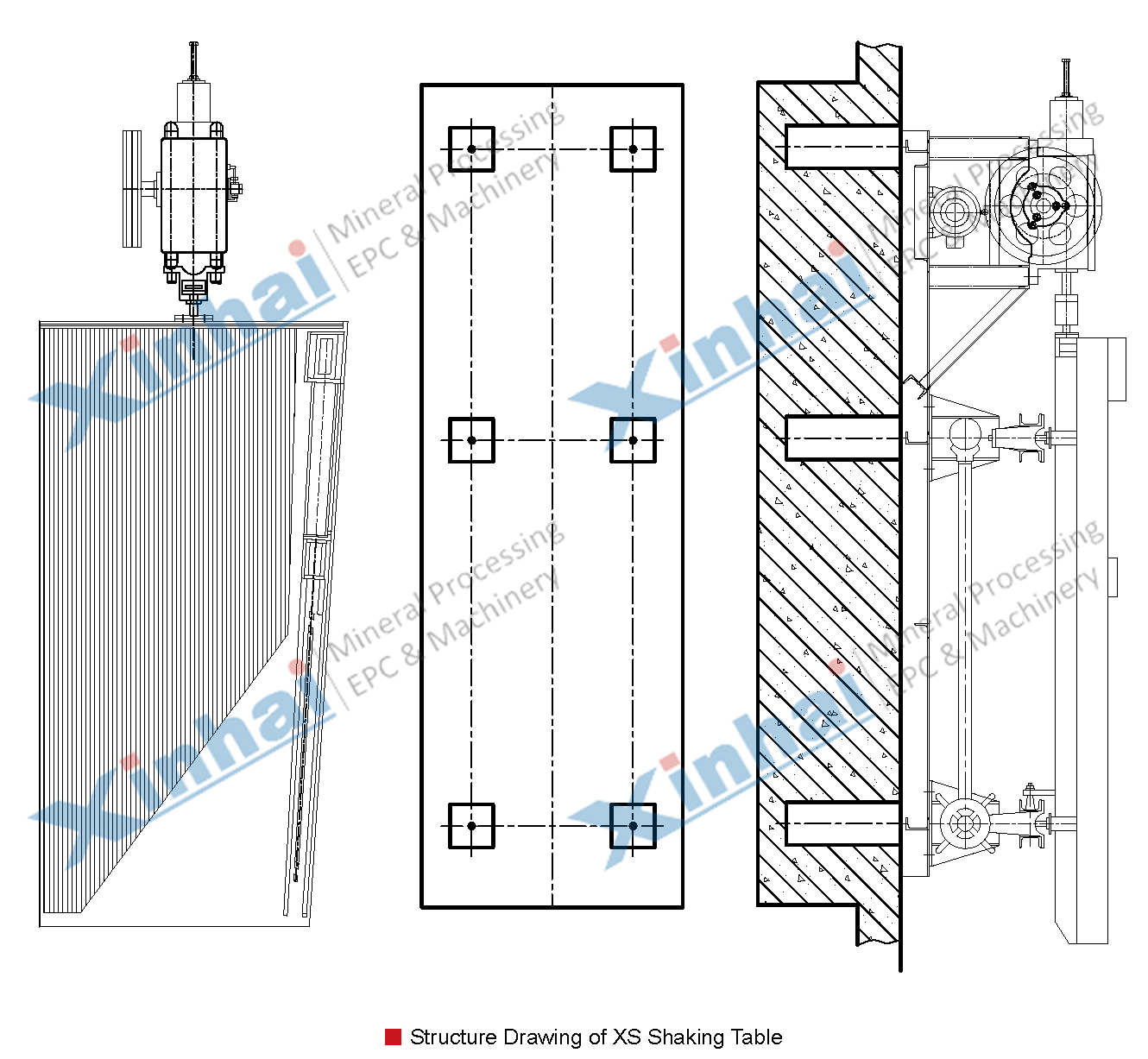

【Product Structure】
The working principle of gold concentrating table (shaking table) is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
【Technical Parameters】
| Model | XS 7.6 | XS 4.08 | XS 1.95 | XS 0.5 | |||
| Bed Surface Type | Coarse Sand Bed Surface | Fine Sand Bed Surface | Slurry Bed Surface | 3 Kinds Of Bed Surfaces Selectable | |||
| Beneficiation Area of Bed Surface (m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |
| Bed Surface Dimension | Length (mm) | 4500 | 4500 | 4500 | 3000 | 2100 | 1100 |
| Width of Driving End (mm) | 1850 | 1850 | 1850 | 1320 | 1050 | 500 | |
| Width of Concentration End (mm) | 1550 | 1550 | 1550 | 1100 | 850 | 430 | |
| Max. Feed Size (mm) | 2 | 0.5 | 0.074 | Ore Sand -2 Slurry -0.1 | Ore Sand-2 Slurry -0.074 | Ore Sand -2 Slurry -0.074 | |
| Capacity (t/h) | 1 ~1.8 | 0.5 ~1 | 0.3~0.5 | 0.4~1.5 | 0.3~0.8 | 0.05~0.2 | |
| Feed Density (%) | 20 ~30 | 18 ~25 | 15 ~20 | 10 ~30 | |||
| Stroke (mm) | 16 ~22 | 11 ~16 | 8~16 | 6~30 | 12 ~28 | 9~17 | |
| Jig Frequency (r/min) | 220 | 250 | 280 | 210~320 | 250~450 | 280~460 | |
| Water Consumption (t/h) | 0.7 ~1 | 0.4 ~0.7 | 0.4 ~0.7 | 0.3~1.5 | 0.2 ~1 | 0.1~0.5 | |
| Notch Groove Section Shape | Rectangle | Sawtooth Wave | Triangle | Rectangle, Sawtooth Wave and Triangle Selectable | |||
| Motor Power (kW) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | |
【Successful case】
In 2003, the gold grade of a gold concentrator in Shandong is higher, so gravity separation process is adopted to gold processing, the customer purchased equipment in Xinhai concentrating table (shaking table) manufacturers. According to the geographical location and customer requirements, Xinhai provided a 6s concentrating table that added crank connecting rod and special lubrication system. In the process, the recovery rate of rougher concentrate reached 77.78%, the hierarchy is obvious, the gold purity is 3% higher than the theoretical value, and the customer is very satisfied with this result.
