Home Product Thickening Peripheral Transmission Thickener
Peripheral Transmission Thickener
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Unique bridge design, excellent rigid strength and strong overload capacity.
Peripheral roller transmission, low energy consumption, stable and reliable operation.
Simple operation, convenient maintenance and remote control.

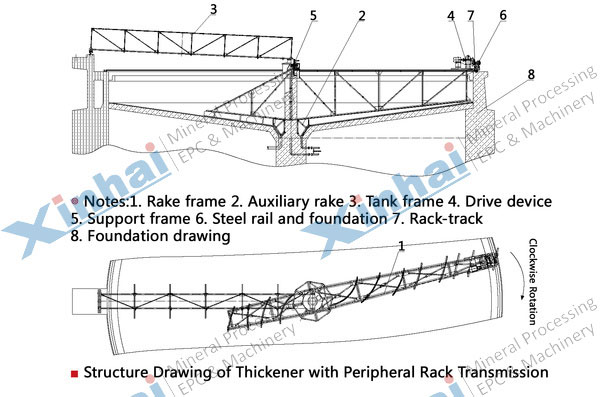

【Product Structure】
This thickener consists of round thickener and harrow scraping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
【Technical Parameters】
Peripheral Roller Transmission Thickener
| Model | Thickening Tank Diameter (mm) | Thickening Tank Center Depth (mm) | Capacity (t/d) |
Subsidence Area (m2) | Motor Model | Motor Power (kW) |
Weight (kg) |
| NG-15 | 15000 | 3612 | 88 〜390 | 177 | Y132M2-6 | 5.5 | 11702 |
| NG-18 | 18000 | 3500 | 127〜560 | 255 | Y132M2-6 | 5.5 | 9718 |
| NG-24 | 24000 | 3400 | 226〜1000 | 452 | Y160M-6 | 7.5 | 24000 |
| NG-30 | 30000 | 3940 | 353〜1570 | 707 | Y160M-6 | 7.5 | 31000 |
| NG-45 | 45000 | 5060 | 790〜2400 | 1590 | Y160L-6 | 11 | 50640 |
| NG-53 | 53000 | 5070 | 1000〜3400 | 2202 | Y160L-6 | 11 | 60910 |
| Model | Thickening Tank Diameter (mm) | Thickening Tank Center Depth (mm) | Capacity (t/d) | Subsidence Area (m2) | Motor Model | Motor Power (kW) |
Weight (kg) |
| NT-15 | 15000 | 3500 | 88~390 | 177 | Y132M2-6 | 5.5 | 11702 |
| NT-18 | 18000 | 3700 | 127~560 | 255 | Y132M2-6 | 5.5 | 12120 |
| NT-24 | 24000 | 3400 | 226~1000 | 452 | Y160L-8 | 7.5 | 28270 |
| NT-30 | 30000 | 3940 | 353~1570 | 707 | Y160M-6 | 7.5 | 31000 |
| NT-45 | 45000 | 5025 | 790~2400 | 1590 | Y160L-6 | 11 | 58640 |
| NT-53 | 53000 | 5070 | 1000~3400 | 1964 | Y160L-6 | 11 | 69410 |
【Successful case】
In a mineral processing plant, the production capacity is not up to demands due to central transmission thickener. After discussion, the customer adopted Xinhai peripheral transmission thickener. Its unilateral rake has much higher capacity, high efficiency, low consumptions and low power consumption, not only applies to concentrate thickening, but also applies to the dewatering of tailings, which is more suitable for production capacity.
