Home Product Thickening Hydraulic Motor Driving Center Thickener
Hydraulic Motor Driving Center Thickener
- 【Introduction】:
- 【 Capacity 】:
- 【Improvement】:
【Advantages】
Simple and convenient installation & maintenance.
The simple internal structure is convenient for the layout of hydraulic and electric control system.
Control the speed of rake by regulating oil volume of oil pump, so as to achieve the best state.
Automatic rake lifting and dropping

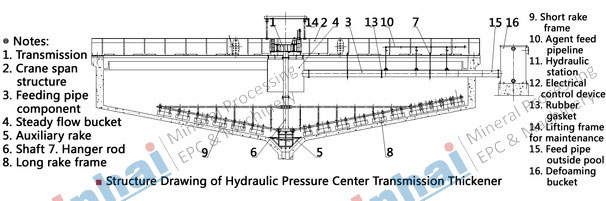

【Product Structure】
Mainly used for clarification and concentration of coal slurry or pulp Also used for dewatering of solid-liquid separation in chemical industry, metallurgy industry, etc.
【Technical Parameters】
| Model | Thickening Tank Diameter (m) | Thickening Tank Center Depth (m) | Subsidence Area (m2) | Time of Harrow Rack Rotation (min) | Height of Lifting Harrow (mm) | Capacity (t/d) |
Drive Power (kW) |
| NZY-6 | 6 | 3 ~3.2 | 28 | 2.5 ~5 | 350 | 50~100 | 3 |
| NZY-9 | 9 | 3.5~3.8 | 63.6 | 3~5 | 350 | 120~175 | 3 |
| NZY-12 | 12 | 3.5~3.8 | 113 | 4~7 | 350 | 200~300 | 4 |
| NZY-15 | 15 | 4 ~4.5 | 176 | 5~10 | 450 | 350~400 | 5.5 |
| NZY-18 | 18 | 4 ~4.5 | 254 | 8~12 | 450 | 600~800 | 5.5 |
| NZY-20 | 20 | 4 ~4.5 | 314 | 8~12 | 450 | 800~1000 | 7.5 |
| NZY-24 | 24 | 4.5~5.5 | 450 | 9~12 | 450 | 1000~1300 | 7.5 |
| NZY-30 | 30 | 4.5~5.5 | 706 | 10 ~14 | 450 | 1500~1800 | 11 |
| NZY-38 | 38 | 6.5 ~8 | 1134 | 15 ~22 | 600 | 1800~2200 | 15 |
| NZY-40 | 40 | 6.5 ~8 | 1256 | 15 ~22 | 600 | 2200~2400 | 15 |
| NZY-45 | 45 | 6.5 ~8 | 1590 | 15 ~22 | 600 | 2400~2800 | 15 |
| NZY-53 | 53 | 6.5 ~8 | 2206 | 15 ~22 | 600 | 3000~3500 | 15 |
| NZY-60 | 60 | 7 ~8.5 | 2827 | 16~50 | 600 | 3500~5000 | 18.5 |
| NZY-75 | 75 | 8~10 | 4418 | 20 ~80 | 800 | 7500~10000 | 22 |
| NZY-100 | 100 | 8~10 | 7853 | 35~80 | 800 | 10000~15000 | 30 |
【Successful case】
The thickening equipment of gold cyanide factory adopted hydraulic motor driving center thickener, the capacity does not meet expected goals, and the timing of rake lost working hours, the working efficiency is low. On this basis, the client increased two improved hydraulic motor driving center thickener. Hydraulic type makes greater capacity, the thickening efficiency is higher; In addition, core PLC automatic pressure sensor signal realized automatic hydraulic rake lifting, the production efficiency is higher, finally achieved thickening goal with higher efficiency.
