【Introduction】:
A flotation cell used for coarse and heavy particles.
【 Capacity 】:
0.5~38m3/min
【Improvement】:
CLF flotation cell adopts a new type impeller, stator system and a brand-new slurry circulation mode, which effectively improve the load capacity of the mineralized bubble and the particle size of the floated ore.

【Advantages】

CLF flotation cell is featured with high-density flotation pulp, high separated concentration, easy to sink tank, and it can effectively improve the recovery rate of the coarse and heavy minerals.

【Product Structure】

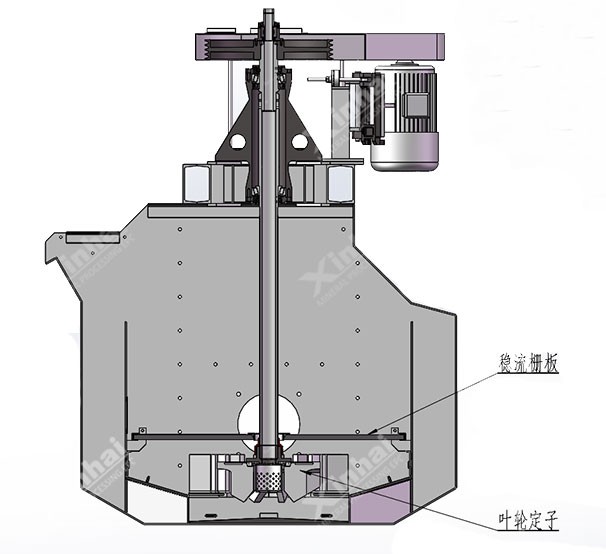

The impeller of CLF flotation cell adopts the high specific speed backward inclined blade impeller. The shape of the lower blade is consistent with streamline that the pulp through the gap between the impeller blade with weak agitation power, which can guarantee the pulp carry out the inner loop along the specified path. The upper pulp flows downward to false bottom through the circulating path, and enters to the impeller area under the action of differential pressure produced by inflation area and airless area and the suction force of impeller, then passes through the grid plate and forms the superposed layer above the grid plate. The coarse-grained minerals suspend in over the grid plate, the grid plate shortens the climbing dist of mineral laden bubble, makes the coarse-grained minerals in the state of shallow-tank flotation, reduces the turbulent flow of pulp in the upper area of tank, and builds a stable separation zone and froth bed.

【Technical Parameters】

Model CLF-2 CLF-4 CLF-8 CLF-16 CLF-30 CLF-40
Effective volume 2 4 6 16 30 40
Cell size(L×B×H)mm 1200×1600×1250 1600×2100×1500 1900×2500×1950 2500×3200×2400 3300×4000×3000 φ4200×3900
Production capacity m3/min 0.5-2 1-4 1-6 4-16 7-30 8-38
Inspiratory capacity m3/(m2.min) 1.5 1.5 1.5 1.5 1.5 1.5
Spindle motor



Model

Suction tank Y160M-6 Y200L-8 Y200L2-6 Y280S-6 Y315M-8 Y315M-8
DC tank Y132M2-6 Y180L-8 Y200L-8 Y280S-8 Y315S-8
Power kw Suction tank 7.5 15 22 45 75 75
DC tank 5.5 11 15 37 55
Rotate speed r/min Suction tank 790 730 790 730 740 740
DC tank 790 730 730 730 740
Impeller Diameter mm Suction tank 460 620 750 790 1110 1090
DC tank 410 580 645 750 880
Scraper motor Model Y100L-6 Y100L-6 Y100L-6 Y100L-6 Y100L-6 Y100L-6
Power kw 1.5 1.5 1.5 1.5 1.5 1.5
Scraper speed r/min 16 16 16 16 16 16
Weight(Single cell)kg Suction tank 1591 3002 5168 9230 17010 23690
DC tank 1481 2702 4654 8970 15950

【Successful case】

CLF Flotation Cell-case

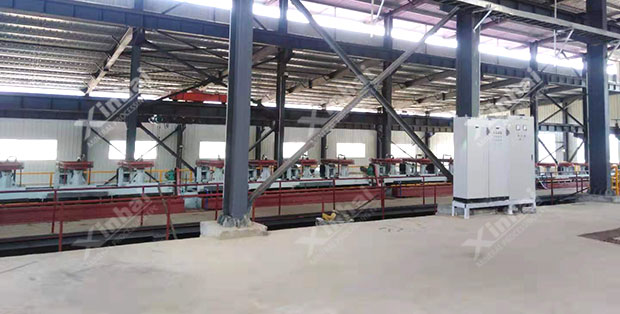

Xinhai provided the mineral processing EPC+M+O service for a barite concentrator. Through the mineral processing test, Xinhai customized the gravity separation-flotation process. The flotation stage adopted Xinhai CLF flotation cell. The main characteristics of this flotation cell is high-density flotation pulp, high separated concentration, and it can effectively improve the recovery rate of coarse and heavy grain minerals.
