Tanzania 1200tpd Gold Mineral Process Plant

Tanzania 1200tpd gold mineral processing project has finished the installation and commissioning part recently, now has been put into operation, during the installation and commissioning process, Xinhai employees carry forward the work style of working hard and develop the rigorous attitude to guarantee high quality finishment of the work in short period. The production line has got anticipated recovery rate, Xinhai employees got highly appreciated from the customer.

Project Overview

Xinhai Tanzania 1200tpd gold mineral processing project is located in Africa,thus has big differences from domestic one in project management, construction technology,resource supply and work coordination.

Xinhai tanzania gold minng plant

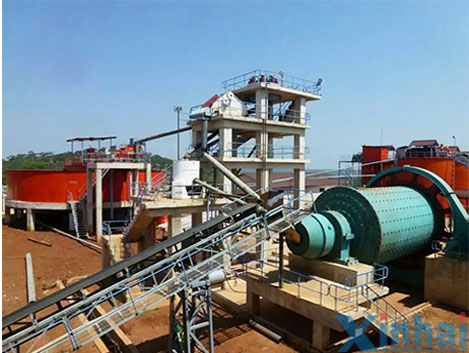

Pictured above is the grinding and thickening panorama of the Xinhai Tanzania 1200tpd gold mineral process plant.

Pictured right is a group photo from project site of Xinhai employees with the customer.

Main Work of the Project:

Mainly includes thickening,cyaninding and desorption electrosis parts.Main work of the installation and commissioning includes:
1.Install the equipment such as thickening,cyaniding,desorption electrosis system.
2.Install the pipelines and operation platforms (exclude tailings pipelines of outdoors);
3.The electric power, water supply and drainage.(exclude water supply from water source)

group picture of customers with Xinhai personnels of Xinhai Tanzania 1200tpd gold mining plant

This project applys all slime cyanidation to leach gold,the ore mainly sulfide ore and oxidized ore.

Key Solutions of the Project:

This project applys all slime cyanidation to leach gold,the ores mainly are sulfide ore and oxidized ore.
Oxidized ore has grade of 2.4g/t,gold is the only valuable element that can be recovered and the all slime cyanidation get 93.75% recovery rate of gold;
Sulfide ore has grade of 10.7g/t,gold is the only valuable element that can be recovered and the all slime cyanidation get 91.58% recovery rate of gold;

all slime cyaniding system

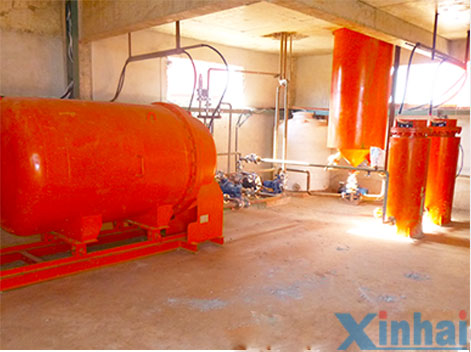

desorption electrolysis system

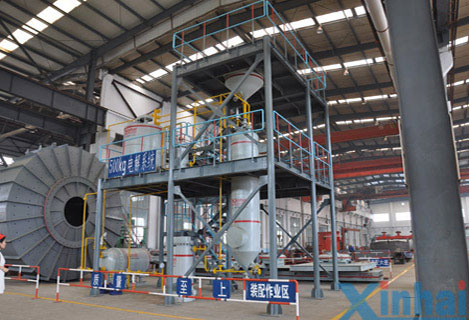

Above is part of the desorption electrolysis system of the project,which is the core equipment of the all slime cyanidation.Pictured left is a panorama of desorption electrolysis system.

Anions that can be easily adsorbed by activated carbon have been put into the desorption system to displace Au(CN)2- for the desorption of gold.Rich liquid from the desorption of loaded carbon can be recovered by ionization method to get solid gold.

Civil Construction

Civil construction mainly includes factory building and equipment foundation construction.after the foundation construction work of thickening and leaching tank, the installation and construction of pipeline and electric instrument also should be finished.

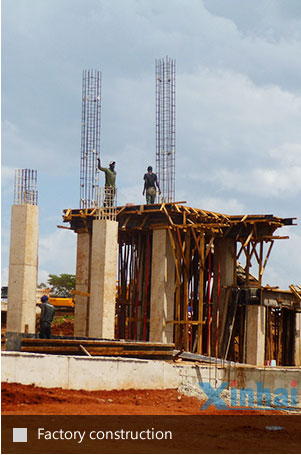

factory construction

Field personnel of Xinhai in the project should pay more attention to sunscreen and mosquito bites, thus they has to wrap themselves in the unbearably hot day.

construction workers

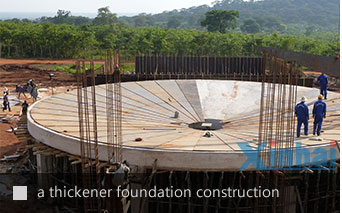

a thickener foundation construction

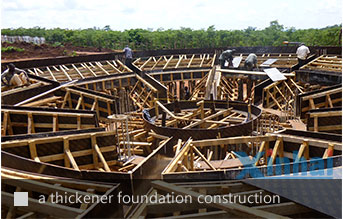

a thickener foundation construction

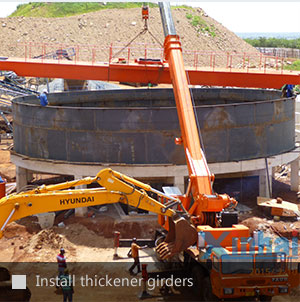

Install thickener girders

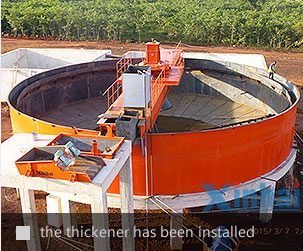

the thickener has been installed

Subsection hoisting leaching tank. Equipment like leaching tank and thickening belongs to thin-walled tank,to protect the deformation of non-standard equipment,the larger-diameter tanks will manufacture in China,and install at the project site.For smaller-diameter tanks,professional hangers will be used in the hoisting work.

Cylinder welding of the leachin tank

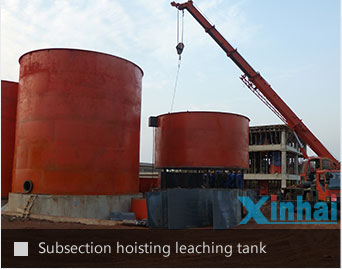

Subsection hoisting leaching tank

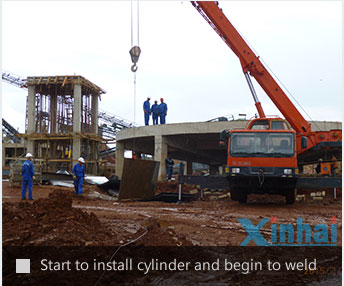

start to install the cylinder and begin to weld

Construction Finished

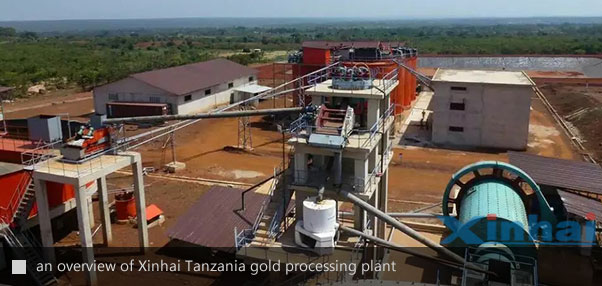

an overview of Xinhai Tanzania gold processing plant
an overview of Xinhai Tanzania gold processing plant
Jiang Yunjie from installation and commissioning department of Xinhai

Pictured above is Jiang Yunjie,the director of installation and commissioning department of Xinhai,who holding the first produced gold

group picture of Jiang Yunjie and the customer

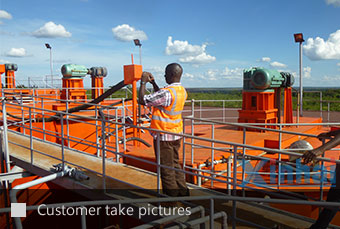

customer take pictures
an overview of Xinhai Tanzania gold processing plant
personnel of Xinhai in this project
