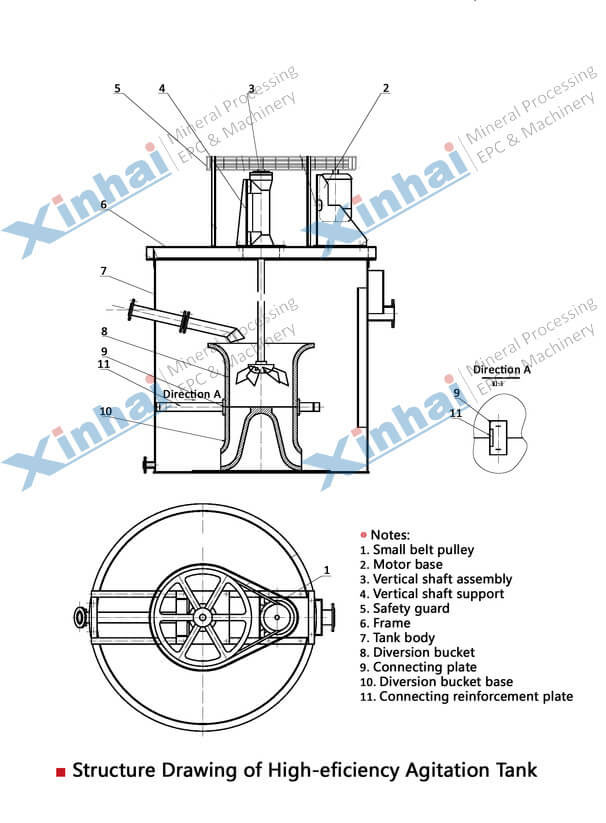

structure High-eficiency Agitation Tank

High Efficiency Agitation Tank

【Introduction】:
Agitation equipment which forces the slurry to take up and down circulation
【 Capacity 】:
0.58~45m3
【Improvement】:
Umbrella shaped impeller presses the slurry, so that the slurry takes up and down circulation along draft tube, which makes reagents and slurry mix well

【Advantages】

Advanced structure of impeller, strong stirring ability;

The impeller of Xinhai high efficiency agitation tank adopts umbrella shaped with large diameter and linear velocity to enhance the agitation and circulation capability;

The enhancement of circulation capability improves floatation index;

The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.

【Product Structure】

High efficiency agitation tank is mainly applied in slurry stirring before floatation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.

【Technical Parameters】

Model Effective Volume (m3) Rotating Speed of Impeller (r/min) Diameter of Impeller (mm) Motor Model Motor Power
(kW)
Weight
(kg)
GBJ-1000X1000 0.58 530 240 Y112M-6 2.2 548
GBJ-1250X1250 1.15 350 240 Y100L2-4 3 820
GBJ-1500X1500 2.2 320 420 Y132M2-6 5.5 1350
GBJ-2000X2000 5.46 240 560 Y160M-6 7.5 3173
GBJ-2500X2500 11.2 232 560 Y180L-6 15 3939
GBJ-3000X3000 19.1 220 700 Y225S-8 18.5 6676
GBJ-3500X3500 31 248 700 Y225M-8 22 7581
GBJ-4000X4000 45 153 1000 Y250M-8 37 9560

【Successful case】

structure High-eficiency Agitation Tank-case

The gold processing plant in Guangxi adopted the traditional slurry agitation tank in the process of slurry mixing and dosing, but the agitation power is not strong, the pulp rotated around the vertical axis caused the drug combination is uneven, and the impeller is quick-wearing. Later consulted Xinhai. Xinhai recommended an efficient agitation tank, the equipment has big diameter of umbrella impeller, the linear velocity is fast, which makes the even mixing of agent, the energy consumption saved 24% than slurry type agitation tank, the reagent consumption save 20%, the flotation index significantly higher than before. The impeller adopts polyurethane materials with strong owear-resisting performance, obtained the satisfactory results.
